Description

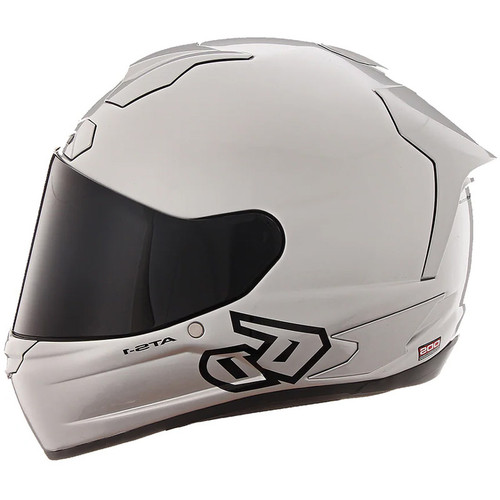

6D ATS-1R Full Face Helmet

The 6D ATS-1R helmet sets a new standard in safety and performance. Designed to meet the needs of top racers and recreational riders alike, the ATS-1R offers class leading safety technology and premium features to enhance the rider's experience, all encased in a lightweight, aerodynamic 3k Carbon shell. Developed as part of 6D's award-winning work during the NFL's Head Health Challenge III competition, the latest ODS technology offers superior linear and angular acceleration mitigation performance compared to other helmet technologies.

ONLY 6D HAS ODS™

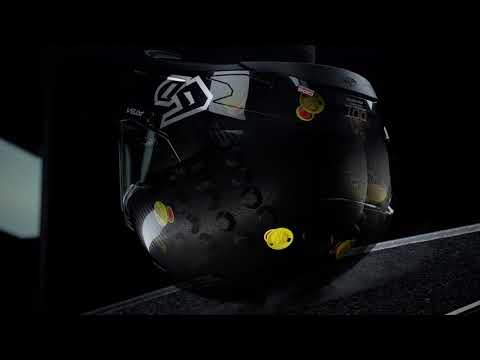

6D’s Omni-Directional Suspension™ technology is an active, in-helmet suspension and energy management system that is only found in 6D Helmets.

3K CARBON FIBER SHELL
The ATS-1R 3K carbon fiber shell provides an exceptional strength-to-weight ratio, effectively managing impact forces for maximum head protection while reducing weight, rider fatigue and enhancing comfort.

RACE PROVEN AERODYNAMICS
Our advanced Computational Fluid Dynamics (CFD) design maximizes airflow efficiency, reducing drag and enhancing stability.

OPTIMIZED SHELL DESIGN
The 6D concept of 'Optimized Shell Design' encompasses a system in which multiple materials collaborate to enhance protection and energy management. The shell needs to maintain structural integrity to prevent penetration while avoiding excessive stiffness. Excessive stiffness can undermine the helmet's ability to manage energy effectively.

EPS DAMPING TOWERS
Damping Towers are placed strategically throughout the inner surface of the outer EPS liner as well as the outer surface of the inner EPS liner to assist in progressive loading of the ODS system during impacts.

ISOLATION DAMPERS
Isolation Dampers connect the ODS™ carrier to the outer EPP liner to isolate impact energy from the brain. These dampers have elastic properties and a unique shape that create a progressive spring rate, helping to manage low-threshold energy. The hourglass shape and elasticity also aid in managing the inner liner's three-dimensional displacement.

MULTI-DENSITY EPS LINERS
By utilizing multiple densities of EPS liners, the EPS works in conjunction with the damper array to create an effective energy absorption system.

EPS CHINBAR
Thicker lower density EPS lined chinbar is more durable and provides more energy absorbing material for side impacts to the jaw area.

Features:

Patented Omni-Directional Suspension™ (ODS)
Lightweight 3k carbon fiber shell
Air-gap™ ventilation system - 4 adjustable intake ports channel fresh air into the helmet where it is managed by a network of 15 transfer ports and 5 exhaust ports
Adjustable air intakes for chin, brow, and crown regions, easily operated with gloves on
Aerodynamic wing design maximizes efficiency, reducing drag, buffeting, and lift at higher speeds
Internal breath guard minimizes fogging by directing fresh air up the inside of the shield and exhausting breath down and out

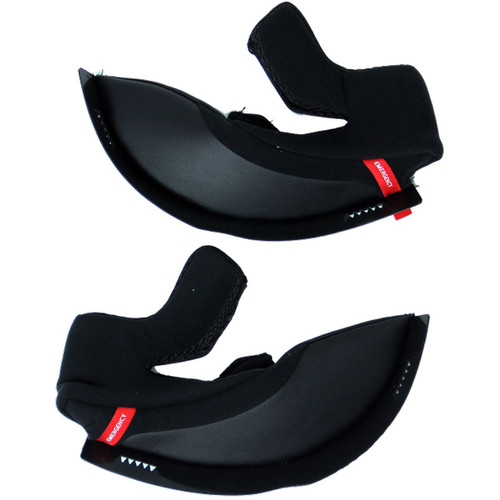

Multiple pad options for customizable fit
Removable neck cuff and chin curtain for versatility

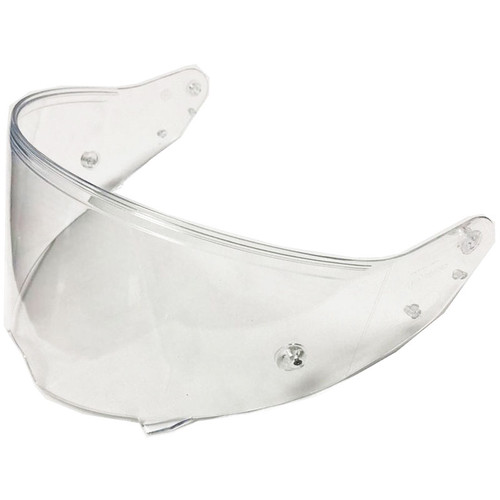

Certified vesc-8 anti-scratch shield for durability
10 position shield adjustment with lockdown lever and tool-less shield changing
Clear Pinlock® 120 anti-fog insert included
Integrated speaker pockets for communication systems
Eyewear compatible
Deluxe helmet bag included
+/- 1560g
3-year limited warranty
Certified to exceed US DOT FMVSS 218 (United States), ECE 22-06 (47 countries world-wide), ACU (United Kingdom) and FIM-frhphe-01 (XS/S/M) standards.
